Home /Products/Homogenizer Mixing Tank/Liquid With Hanging Tank Solids Price of Stainless Steel Hand Sanitizer Gel Homogenizer Mixer Liquid Soap Mixing Detergent Making Machine

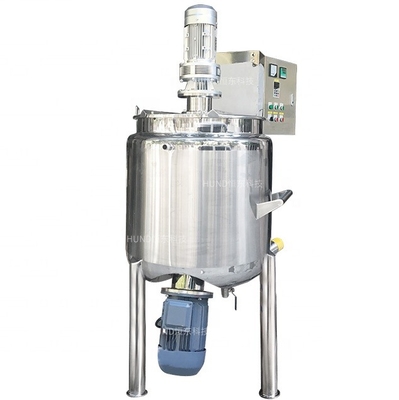

Liquid With Hanging Tank Solids Price of Stainless Steel Hand Sanitizer Gel Homogenizer Mixer Liquid Soap Mixing Detergent Making Machine

1.0 Sets
MOQ
Liquid With Hanging Tank Solids Price of Stainless Steel Hand Sanitizer Gel Homogenizer Mixer Liquid Soap Mixing Detergent Making Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Mixer Type: Homogenizer
Barrel Volume (L): 1000
Material Processed: Plastics, Chemicals, Food, Medicine
Max. Loading Volume (L): 1000 L
Range Of Spindle Speed(r.p.m): 1 - 3000 R.p.m
Weight (KG): 250 KG
Material: SUS304, SUS316L, SUS304 Or 316L
Condition: New
Product Type: Cosmetic
Application: Liquid With Suspended Solids, Medicine Chemical Food Cosmetic Processing
Voltage: 220V-480V, Customized, 220V/380V/400V/415V/480V
Dimension(L*W*H): Can Be Customized
Power (kW): 7.5 KW
Warranty: 1 Year
Key Selling Points: Long Service Life
Applicable Industries: Manufacturing Plant, Food & Beverage Factory, Farms, Food Shop, Food & Beverage Shops, Other
Showroom Location: None
Marketing Type: Hot Product 2021
Machinery Test Report: Not Available
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Motor
Power: 0.75-75KW
Speed: 0-65rpm,0-2800rpm
Heating Method: Electric/steam/constant Temp External Circulation
Mixing Type: Homogenizer / Agitator / Propeller
Insulation Material: PU Foam / Rock Wool
Function: Heating , Cooling And Mixing
After-sales Service Provided: Online Support, Video Technical Support
After Warranty Service: Video Technical Support, Online Support
Local Service Location: None
Certification: CE
Basic Infomation
Certification: CE
Payment & Shipping Terms
Packaging Details: standard export wooden case
Supply Ability: 100 Set/Sets per Month
Product Description
Products Description

Application:

It is widely used in dairy industry, food industry, pharmacy, chemical industry, beverage and other industrial sectors, as heating, cooling, heat preservation, anti-corrosive, anti-corrosive, strong production capacity, Cooling,insulation, sterilization treatment or storage of slurry must be stainless steel mixing tanks, especially for pasteurization of milk and
insulation, ice cream production line is the necessary equipment.
Material: SS304 / 316L;
Capacity: 50-5000L (customized is accepted);
Configuration with agitator and/or homogenizer;
Jacket: single layer, double jacket, three-layer
Thickness: 2mm, 3mm, 4mm, 5mm, 6mm, 8mm etc. (design according to pressure);
Head: open cover, seal with manhole/handhole etc.;
Shape: cylinder or cone, conical /flat/elliptical bottom with discharge.
Heat Method: gas, steam, electricity;

Parameters：
Capacity
Heating power (KW)
Inner diameter(mm)
Jacket diameter (mm)
Speed(rpm)
power(KW)
HD-50L
4*2
400
600
23-600/2800
0.75kw/2.2kw
HD-100L
6*2
500
700
23-600/2800
1.1kw/3.0kw
HD-300L
6*4
800
1000
23-600/2800
2.2kw/4.0kw
HD-500L
9*4
900
1100
23-600/2800
3.0kw/7.5kw
HD-1000L
12*4
1200
1400
23-600/2800
4.0kw/11kw
HD-2000L
15*5
1400
1600
23-600/2800
4.0kw/22kw
HD-3000L
15*6
1600
1800
23-600/2800
5.5kw/30kw


Structure:

The equipment is a liquid storage containers, composed of reducer, stirring paddle and the material valve, disc thermometer and other components.

Single layer

the inner layer: adapts stainless steel plate SS304 or 316L material, and the surface mirror polishing.

Double jacket

the jacket: made of SS304 steel, spiral jacket device, cold water from the bottom up without pressure, to achieve the purpose of the best heating and cooling.

Three layers

the external insulation layer: the environmental polyurethane foam casting/ perlite particles, maintaining the temperature difference with the outside, to the effect of insulation.

Reducer

Reducer output shaft connected with the stirring paddle, the use of looper connection, easy disassemble and cleaning.

Additional devices

Sterile respirator, sterile sampling port, manhole/cover, inlet and outlet, thermometer, CIP cleaning spray balls, Liquid level gauge, ladder, (Other special customized requirements from customers are acceptable.)
Agitator and emulsifier
Mixing speed rpm and impeller type can be customized according to customers’ request.Such as：
Anchor with scrapers
Frame with scrapers
Dispenser（single/double/three layers）
Triple impeller（double/three layers）
Turbine disk
Pitched paddles
Ribbon mixer
Top entry high shear emulsifier
Bottom entry high shear emulsifier
Anchor+ Dispenser
Anchor+ Top emulsifier
Anchor+ Bottom emulsifier
Anchor+ Emulsifier+Dispenser
Anchor+ Emulsifier+Pitched paddles
(one-direction/ Coaxial double-direction)
......

Type A: suitable for materials that are easy to mix and have no requirement for fineness.
Type B: applied to vacuum/pressure tank, mechanical seal is installed on the shaft to prevent liquid/gas leakage.
Type C: more suitable for materials that are not easy to mix and have requirement for fineness.
Type D: installed at the bottom of the tank and is usually used with overhead mixer together.

High Shear Mixer
A.Top entry
To be used both in open cover atmospheric pressure tank and sealed with manhole vacuum/positive pressure tank.
B.Bottom entry
It is outstanding when the liquid level in the tank gets very low during operation, or the space is limited. What is more, strong vortex as well as aeration is greatly reduced with the bottom mounted mixers.
Product showing:
Recommend Products
Packing and shipping
Company Profile
HUNDOM is a high-tech enterprise integrating R&D, production and sales. We have more than 18 years of mechanical manufacturing experience. Main production: stainless steel mixing tank,homogeneous emulsion tank, in-line high shear pump,transfer pump,colloid mill, filters etc. HUNDOM has mature technology and high quality products to meet various requirements in the field of food, pharmaceutical and chemical industry. With a high level of R&D system, HUNDOM constantly strives to improve product quality and technical standards, constantly develops product functions to enhance product life and adherence to precision manufacturing. The ex-factory products need to undergo strict quality inspection procedures to ensure that they meet the quality requirements and inspection standards of all walks of life. The mature technology and rigorous attitude are the guarantee of HUNDOM Technology’s product quality, to think what the customer thinks, and pleased what the customer likes. Provide a reasonable and effective equipment solution.
Why Choose Us
FAQ
1. About Delivery term
Q: What's the delivery term for doing business with you?
A: EXW/FOB/CIF/DDU… it depends on preference of clients.
2. About Lead time
Q: What's the leading time after placing order?
A: After getting your confirmation, mixing tank about 25 days, pump 15 days, colloid mill 10 days. However, it depends on production schedule is in slack or peak season, and the complication of machines.
3. About Payment time
Q: What's the payment term?
A: T/T 40% as down payment, 60% balance payment before delivery.
4. About Quality
Q: How do you control your quality?
A: All machines before delivery will be tested and send video for customer, if no problem then arrange balance payment. Meanwhile,CE is available for customers' needs.
5. About Packing
Q: How do you pack the machines?
A: Standard export wooden case, to avoid damage during delivery.
6. About Customized
Q: Can you produce according to the samples?
A: Yes,we can produce by your samples or technical drawings.
