Home /Products/Liquid Mixing Tank/Horizontal and vertical tank stainless steel fully automatic liquid mixer available

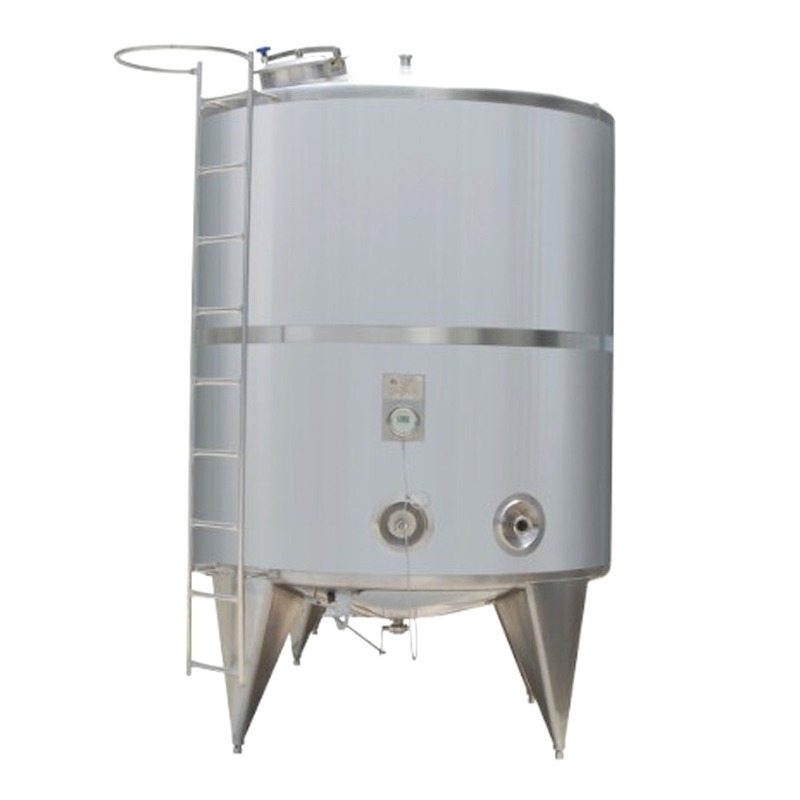

Horizontal and vertical tank stainless steel fully automatic liquid mixer available

1.0 Sets
MOQ
Horizontal and vertical tank stainless steel fully automatic liquid mixer available
Features Gallery Product Description Request A Quote
Features
Specifications
Mixer Type: Agitator
Barrel Volume (L): 20000
Material Processed: Chemicals, Food, Medicine
Max. Loading Volume (L): 20000 L
Range Of Spindle Speed(r.p.m): 100 - 960 R.p.m
Max. Loading Capacity: 20000
Weight (KG): 900 KG
Material: SUS304, SUS316L, AISI304/316L
Condition: New
Product Type: Soap
Application: Liquid, Milk;Carbonated Beverage,Fruit Juice Etc Liquid
Additional Capabilities: COATING
Voltage: Customized
Dimension(L*W*H): Customized
Power (kW): 5.5 KW
Warranty: 1 Year
Key Selling Points: Long Service Life
Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Food & Beverage Shops
Showroom Location: Philippines, Saudi Arabia, Pakistan
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Motor, Pump, PLC, Engine
Product Name: Liquid Mixing Machine
Function: Storage, Blending , Heating, Cooling Etc
Shape: Cylinder
Experience: Over 10 Years
Volume: 500L -100000L
Structure: Can Be Customized Design
Standard: CE And ISO Approved
Feature: Horizontal And Vertical Tank Available
After-sales Service Provided: Online Support, Video Technical Support, Free Spare Parts
After Warranty Service: Video Technical Support, Online Support, Spare Parts
Local Service Location: Philippines, Saudi Arabia, Pakistan, Kenya, Bangladesh
Certification: CE/ISO9001
Basic Infomation
Certification: CE/ISO9001
Payment & Shipping Terms
Packaging Details: Standard Export Package including Wooden case,PE wrap film,Carbon Steel
Supply Ability: 500 Piece/Pieces per Year
Product Description
Full automatic stainless steel liquid mixing machine
Product Description
Use: most applicable for storage and mixing of all kinds of liquid products in dairy products, juice, beer and brew, chemistry, and biology engineering;
 Material
 all material used is high quality sus304-2B stainless steel, shell thicknessδ=3mm
 Structure feature
normal construction (single layer), cylindrical shape, triangle or cylinder legs
Agitator types
ithout agitator; wing agitator; anchor type; propeller type; frame type;
Diameter of inlet /outlet
φ38

standard attachments
one air tight side manway;One PT100 thermometer, temperature indication range 0~100℃; a) CIP cleaning ball; Discharge valve with union;
Direction for use
The mixing tank is totally made of sus304 stainless steel,
with 60mm thick PU as heat insulation, which can keep warm of product inside of the tank;
shell 3mm,outer shell 2mm;flat removable cover;with inlet and outlet of water; inner
with digital show thermometer; with product outlet at bottom;high speed agitator(shearer) mounted from top to near of the
bottom;with 4 legs as supporters.widely used to melting sugar, powder milk, and other dissolvable additives.it is very popularly
used in the milk and juice and other food production lines

  • Description of application effect

The cooling jacket can be dimple pad or empty or coiled pipes, which can heat or cool the product inside;
Special design of flow path ensures the cooling or heating medium distribute much well in the jacket, so the heat exchange
efficiency is high.
Use: widely used for preparing(heating), sterilize, fermentation, aging, blending, cream storage etc.
Detailed Images
It can be used in any liquid-liquid, liquid-solid product including emulsion reagent, paint, dye, pigment, paper and so on, which may needs agitation, dispersion, emulsification, equalization, milling, suspending and dissolving in chemical or light industry..
Size Information
Size Chart of This Design
Diameter
External diameter

Height（mm）
Diameter of inlet/outlet
 Mixer speed
(r/m)
Volume(L)
1000
1050
2380
38
36
1000
5000
1780

3250
38
36
5000
Related Products
Packing&Shipping
Standard Export Package including Wooden case,PE wrap film,Carbon Steel

After Sales Service
After Sales Services

1.Installation and commission on site;
2.Online technical video support;
3.Spare parts;
4.Maintenance services;
Company Introduction
Shanghai Beyond Machinery Co., Ltd is a professional technology developing enterprise which mainly engaged in healthy equipmentfields. Combined with R& D, procedure design service, turnkey base project, equipment manufacturing, installation, commissioningand training, our company is specialized in turnkey projects services widely applicable to food industry such as fruit andvegetable juice, dairy product and beverage, meat and bone, egg product, etc. and others include pharmaceuticals and finechemicals as well. Beyond acted as pioneer to introduce and absorb advanced international technology and procedures, continuously innovate and positively promote deep communication and cooperation inside industry, which high effectively push industry develop healthily and orderly.

Our Services & Strength

The cooling jacket can be dimple pad or empty or coiled pipes, which can heat or cool the product inside;
Special design of flow path ensures the cooling or heating medium distribute much well in the jacket, so the heat exchange efficiency is high.widely used for preparing(heating), sterilize, fermentation, aging, blending, cream storage etc.

FAQ
1 ) Q: How can we visit your factory? A: If you come from abroad, air to shanghai airport, then we can pick you up at airport. 2) Q: How do you ensure the quality of your products? A: Our Company is a state owned enterprise with more than 16 years experience , strict operation policy is performed, advanced processing machines guarangtee the precision of all components, workers with operation license, parts get multiprocessing, transmission& electrical parts are of international famous brand. Series of test and inspection are done in the whole producing state. 3) Q: What payment methods your company accept? A: We accept most of the payment methods , but mainly accept T/T, L/C at sight . 4) Q: How long is the warranty time for your products? A: Our officially promised warranty time is 12 months after commissioning . 5) Q: I am new in this field,can you supply us turnkey services? A: YES.We can supply all the system including Market Analysis/Product Analysis/Location Choice/Processing Flow Design/Equipment Layout Design/Building Design direction/Equipment mode selection/Equipment Manufacturing/Equipment Mounting/Equipment Debugging/Worker Training. 6) Q: I haven't done business with you company before, how can I trust your company ? A: Our company has been in Alibaba.com for 14 years, which is longer than most of our fellow suppliers, we have been golden suppliers for years. What ' s more, we have got quite a lot authority certificates, for example, CE, ISO9001, Alibaba onsite check certificate. 7) Q: What ' s the shipment terms and delivery time of your company? A: Well, the delivery time depend on the quantity of your order. Usually is 20 days . For some customized machine 30 days is necessary. 8) Q: Can you supply OEM services? A: Yes,we have our R&D team,and we have more than 400 workers with workshop area 75000 square meters. 9) Q: Do you give any Discount? A: I will surely try my best to help you get those by the best price and good service at the same time.
